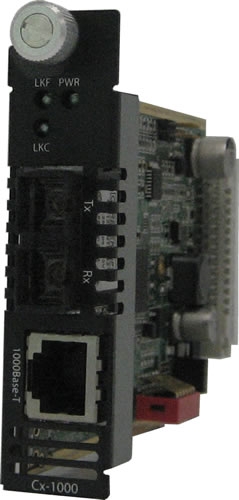

Indicators
|
|
Power / TST
|
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
|
|
Fiber link on / Receive activity (LKF)
|
This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-X interface has been taken down as a result of a fault on the 1000Base-T interface.
|
|
Copper link on / Receive activity (LKC)
|
This green LED is operational only when power is applied. The LED i on when the 1000Base-T link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-T interface has been taken down as a result of a fault on the 1000Base-T interface.
|
|
Switches: On-Board
|
|
Auto-Negotiation
|
Enabled (Default - Up) - In this mode the 1000Base-X and the 1000Base-T will negotiate to the HCD of the two link partners. The 1000Base-X will link up after the negotiation is completed and the 1000Base-T has linked up.
Disabled - The 1000Base-X will not use auto negotiation. The 1000Base-T will negotiate to the HCD of the Switch settings and the link partner.
|
|
Link Mode
|
Link Mode provides a transparency to the state of the copper link allowing for simplified trouble shooting from the devices connected to the media converter.
Normal (Default - Up)
With Fiber Auto Negotiation enabled when the 1000Base-T link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault).
With Fiber Auto Negotiation disabled the state of the 1000Base-T link has no effect on the 1000Base-X link.
Smart Link Pass Through (Down)
With Fiber Auto Negotiation enabled the behavior is as follows. When the 1000Base-T link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault). When Remote Fault (Link Fault) is received on the 1000Base-X interface the 1000Base-T transmitter will be turned off. When the 1000Base-T receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the 1000Base-T transmitter will be turned off.
With Fiber Auto-Negotiation disabled the behavior is as follows. When the 1000Base-T receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the 1000Base-T transmitter will be turned off.
|
|
Pause
|
When Fiber Auto Negotiation is disabled Pause should only be enabled when all devices connected to the media converter support pause.
Enabled(Default) - The Media converter will advertise Pause capable, Asymmetric pause not needed during Auto-Negotiation.
Disabled - The Media converter will advertise that it does not have Pause capability during Auto-Negotiation.
|
|
Fiber Fault Alert
|
The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled
Enabled (Default - Up)
When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature.
Disabled (Down)
|
|
Duplex
|
Full (Default-Up) - The media converter will advertise Full Duplex Capable, Half Duplex Capable.
AUTO (Down) -The Media converter will advertise Full Duplex Not Capable, Half Duplex Capable.
|
|
Remote Loopback
|
The media converter can perform a loopback on the 1000Base-X fiber interface.
Disabled (Default - Up)
Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. The 1000Base-T transmitter is taken off the interface.
|
|
Connectors
|
|
1000Base-T
|
RJ45 connector, 4 pair CAT 5 UTP cable or cable
|
|
Magnetic Isolation
|
1.5kv
|
|
Packet Transmission Characteristics
|
|
Bit Error Rate (BER)
|
<10 -12
|
|
Environmental Specifications
|
|
Operating Temperature
|
0° C to 50° C (32° F to 122° F)
|
|
Storage Temperature
|
minimum range of -25° C to 70° C (-13° F to 158° F)
|
|
Operating Humidity
|
5% to 90% non-condensing
|
|
Storage Humidity
|
5% to 95% non-condensing
|
|
Operating Altitude
|
Up to 3,048 meters (10,000 feet)
|
Heat Output
( BTU/HR )
|
10.2
|
|
Maximum Power Consumption ( Watts )
|
3.0
|
|
MTBF (Hours)*
|
609,000
|
|
Mechanical - Hot Swapping Card
|
|
Edge Connecter
|
32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
|
|
Card insertion and removal
|
Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
|
|
Product Weight
|
|
Weight
|
0.15 kg, 0.33 lbs
|
|
Packaging
|
|
Shipping Weight
|
0.33 kg, .73 lbs
|
|
Shipping Dimensons
|
203 x 38 x 152 mm, 8 x 1.5 x 6 inches
|
|
Regulatory Approvals
|
|
Emissions
|
FCC Part 15 Class A, EN55022 Class A
|
|
CISPR 22 Class A
|
|
EN61000-3-2
|
|
Immunity
|
EN55024
|
|
Electrical Safety
|
UL 60950-1
|
|
EN60950
|
|
CE
|
|
Laser Safety
|
EN 60825-1:2007
|
|
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
|
|
Environmental
|
Reach, RoHS and WEEE Compliant
|
|
Other
|
ECCN: 5A991A
|
|
HTSUS Number: 8517.62.0050
|
|
Perle Limited Lifetime Warranty
|
