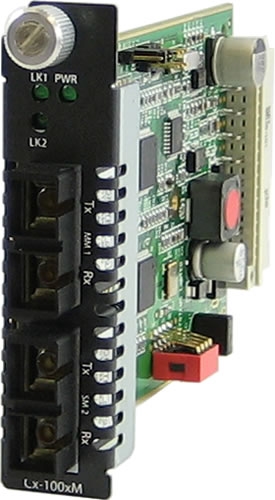

| Indicators |
|---|
| Power / TST |
This green LED is turned on when power is applied
to the media converter. Otherwise it is off. The LED will blink slowly
when in Loopback test mode. |
| Fiber link 1 / Receive activity (LK1) |
This green LED is operational only when power is applied. The
LED is on when the 100Base-X link is on and flashes with a 50% duty
cycle when data is received. |
| Fiber link 2 on / Receive activity (LK2) |
This green LED is operational only when power is applied. The
LED is on when the 100Base-X link is on and flashes with a 50% duty
cycle when data is received. |
| Switches: On-Board ( If Auto/Switch strap is set to Switch ) |
| Auto-Negotiation |
Auto (default up) - Fiber Negotiation is performed
for both fiber ports. Full and half duplex will be advertised. Pause
will advertise support for Symmetrical and Asymmetrical Pause. Pause
frame will not be acted upon or generated but will be passed through.
Off - Negotiation on both fiber ports will be disabled.
Settings of Link mode and Fiber fault alert will be determined by those
switch settings. Pause frames will not be acted upon or generated but
will continue to be passed through. |
| Link Mode |
Smart Link Pass-Through: - (default up) - In this
mode, the link state on one connection is directly reflected through the
media converter to the other connection. If link is lost on one of the
connections, then the other link will be brought down by the media
converter.
Standard: - In this mode the links on both fiber ports
can be brought up and down independently of each other. A loss of link
on either link can take place without affecting the other connection. |
| Fiber Fault Alert |
Enabled - (default up) - If the media converter
detects a loss of fiber signal on a fiber receiver, it will immediately
disable its fiber transmitter signal. This, in effect, notifies the
remote fiber link partner that an error condition exists on the fiber
connection. The setting of this switch applies to both fiber ports.
Disabled: The media converter will not monitor for fiber fault or generate them.
Enabled - The 1000Base-X receiver is looped to the 1000Base-X
transmitter. Link #2's fiber transmitter is taken off the interface. |
| Remote Loopback #1 |
The media converter can perform a loopback on the link #1 fiber interface.
Disabled (Default - Up)
Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #2's fiber transmitter is taken off the interface. |
| Remote Loopback #2 |
The media converter can perform a loopback on the link #2 fiber interface.
Disabled (Default - Up)
Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. Link #1's fiber transmitter is taken off the interface. |
| Configuration Mode Strap |
Auto (default) enable management module to overwrite hardware switch settings Switch - Use on-board DIP switches |
| Fiber Connectors |
| 1000Base-X |
Available in SC, ST and LC connector models |
| Packet Transmission Characteristics |
| Bit Error Rate (BER) |
<10 -12 |
| Environmental Specifications |
| Operating Temperature |
0° C to 50° C (32° F to 122° F) |
| Storage Temperature |
minimum range of -25° C to 70° C (-13° F to 158° F) |
| Operating Humidity |
5% to 90% non-condensing |
| Storage Humidity |
5% to 95% non-condensing |
| Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Heat Output
( BTU/Hr ) |
8.53 |
| Maximum Power Consumption ( Watts ) |
2.5 |
| MTBF (Hours) |
417,722 |
| Mechanical - Hot Swapping Card |
| Edge Connecter |
32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power |
| Card insertion and removal |
Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver. |
| Product Weight |
| Weight |
0.15 kg, 0.33 lbs |
| Packaging |
| Shipping Dimensons |
203 x 38 x 152 mm, 8 x 1.5 x 6 inches |
| Regulatory Approvals |
| Emissions |
FCC Part 15 Class A, EN55022 Class A |
| CISPR 22 Class A |
| EN61000-3-2 |
| Immunity |
EN55024 |
| Electrical Safety |
UL 60950-1 |
| EN60950 |
| CE |
| Laser Safety |
EN 60825-1:2007 |
| Fiber optic transmitters on this device meet Class 1 Laser
safety requirements per IEC-60825 FDA/CDRH standards and comply with
21CFR1040.10 and 21CFR1040.11. |
| Environmental |
RoHS - 2002/95/EC Directive |
| WEEE - 2002/96/EC Directive |
| Reach compliant |
| Other |
ECCN: 5A991A |
| HTSUS Number: 8517.62.0050 |
| Perle Lifetime warranty |
