BB-EPSG202

Advantech BB-EPSG202
See any errors on this page?
Please let us know.

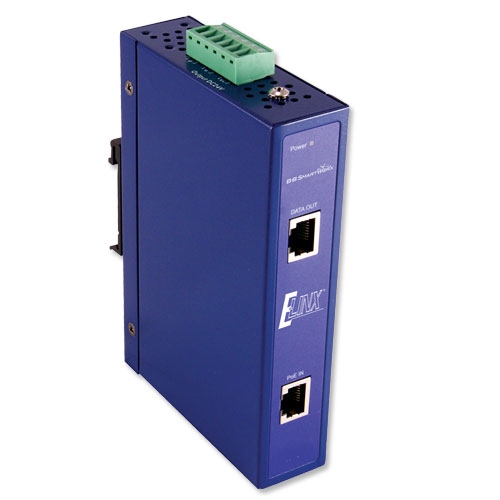

Advantech ELinx gigabit industrial POE splitter, high power (24W) at 24VDC w/ RJ45 ports (DIN rail mountable) (extended temperature model)
ESP Price: $118.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: BB-EPSG202

Description Technical Specs Drivers & Downloads

The Industrial Power over Ethernet Splitter receives a unified PoE signal
(data and power) via UTP/STP cable, and then separates the data from the
power. The power is applied to two different outputs for non PoE devices
which are not compliant with the IEEE802.3af standard.
Features
  • Supports 10/100/1000T for PoE in and data out
  • Power isolation and short circuit protection for power output
  • Auto disconnection for over power voltage input
  • Supports Output power up to 25W at 24VDC
  • Temperature - 40°C to 75°C
  • IP-30 protection
  • DIN rail or panel mount
  • Provides EFT protection 3,000VDC for power line
  • Supports 6,000 VDC Ethernet ESD protection
