EDS-2008-EL

See any errors on this page?
Please let us know.

Alternative Views:

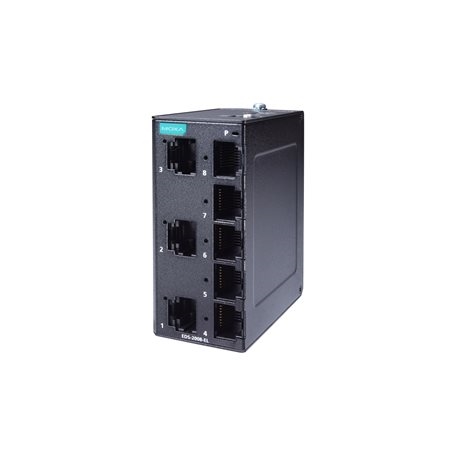

Moxa 8-Port Entry-level Unmanaged Ethernet Switch w/(8)10/100BTX RJ45 ports, 12/24/48 VDC single power input, (1) removable 2-contact terminal block & IP40-rated metal housing (DIN-rail mountable)

ESP Price: $144.75

Contact us for Partner Pricing. (more info)

Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: EDS-2008-EL

Description

Technical Specs

Drivers & Downloads

Introduction

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

Documentation

PDF Data Sheet

PDF Quick Start Guide

10/100BaseT(X) Ports (RJ45 connector)

EDS-2008-EL: 8
EDS-2008-EL-M-ST: 7
EDS-2008-EL-M-SC: 7
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
100BaseFX Ports (multi-mode SC connector)

EDS-2008-EL-M-SC: 1
100BaseFX Ports (multi-mode ST connector)

EDS-2008-EL-M-ST: 1
Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service

Processing Type

Store and Forward
MAC Table Size

8 K
Packet Buffer Size

4 Mbits

Ethernet Interface

Quality of Service (QoS), Broadcast Storm Protection (BSP)

Connection

1 removable 2-contact terminal block(s)
Input Current

EDS-2008-EL: 0.067A @ 24 VDC
EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
Input Voltage

12/24/48 VDC
Operating Voltage

9.6 to 60 VDC
Overload Current Protection

Supported
Reverse Polarity Protection

Supported

Installation

DIN-rail mounting, Wall mounting (with optional kit)
Weight

163 g (0.36 lb)
Housing

Metal
Dimensions

EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in)
EDS-2008-EL-M-SC: 36 x 81 x 67.9 mm (1.4 x 3.19 x 2.67 in)

Ambient Relative Humidity

5 to 95% (non-condensing)
Operating Temperature

EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F)
EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Safety

UL 61010-2-201, EN 62368-1 (LVD)
EMC

EN 55032/35
EMI

CISPR 22, 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Shock

IEC 60068-2-27
Vibration

IEC 60068-2-6
Freefall

IEC 60068-2-32
