EDS-G2005-EL

Moxa EDS-G2005-EL
See any errors on this page?
Please let us know.

Alternative Views:

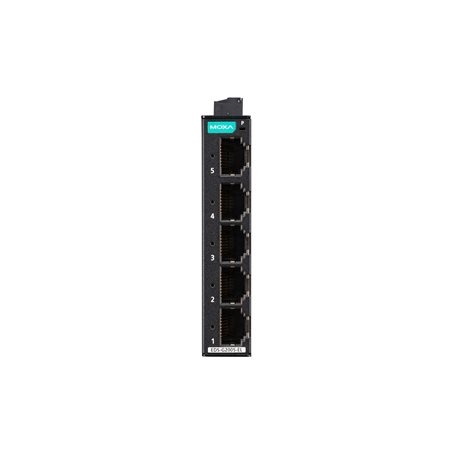

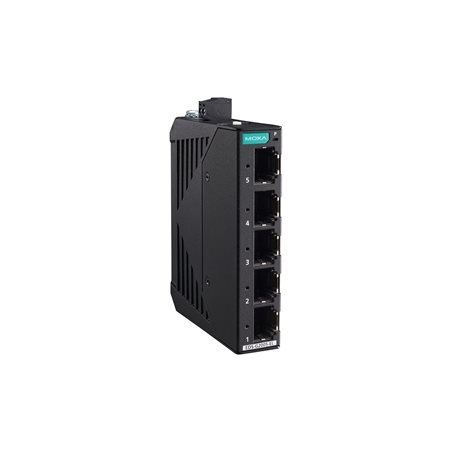

Moxa 5-Port full gigabit Entry-level Unmanaged Switch w/(5) RJ45 10/100/1000BTX) Ports, 12/24/48 VDC single power input & DIN-rail mounting (Metal Housing)
ESP Price: $189.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: EDS-G2005-EL

Description Technical Specs Drivers & Downloads

The EDS-G2005-EL series of industrial Ethernet switches have five Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

The EDS-G2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Features
5-port entry-level unmanaged full Gigabit Ethernet switches with metal housing

  • Full Gigabit Ethernet ports
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C wide operating temperature range (-T models)
