ICRPC-4DB25-FC

Pepperl+Fuchs ICRPC-4DB25-FC
See any errors on this page?
Please let us know.

Pepperl+Fuchs RocketPort Express PCI-e 4 port RS232/422/485 serial board w/DB25M quad cable
ESP Price: $381.00
Contact us for Partner Pricing. (more info)


Free Shipping
Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: ICRPC-4DB25-FC

Description Technical Specs Drivers & Downloads

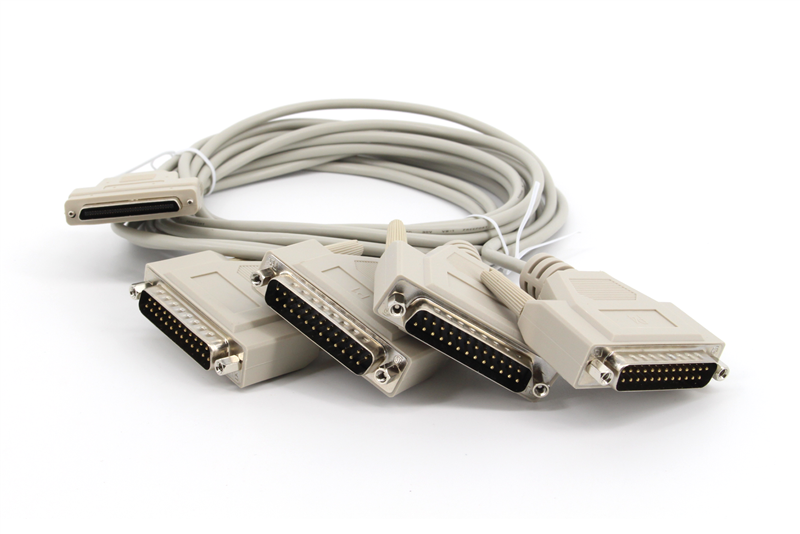

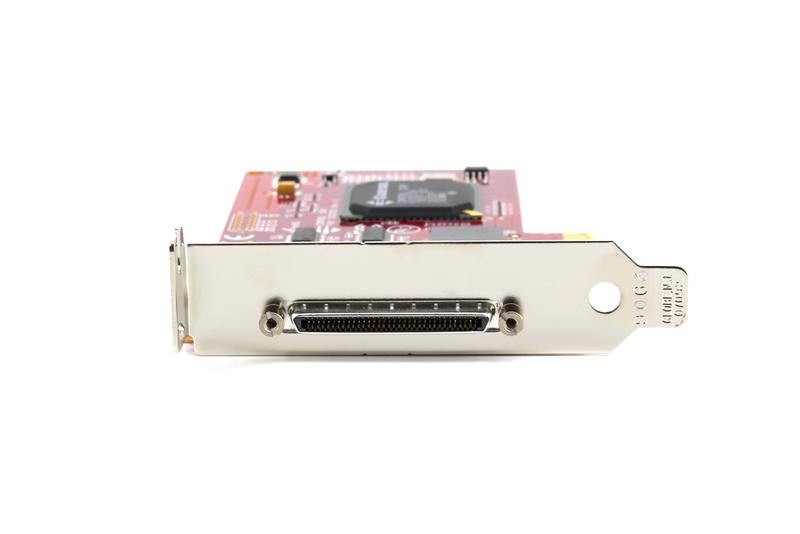

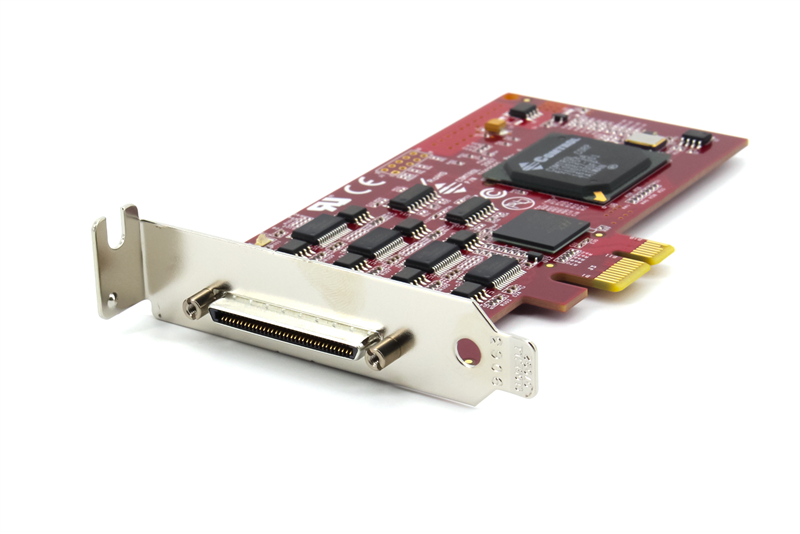

The RocketPort EXPRESS Quad DB25M is a four port serial adapter that is compatible with systems that have x1, x2, x4, x8, x12 or x16 PCI Express expansion slots. The card is designed for standard and low-profile PCs and servers and ships with a low-profile and a standard-height bracket. The product provides support for software-selectable RS-232/422/485 serial communications and data transmission speeds up to 921 Kbps. Serial connections are made utilizing an external fan-out quadcable with four DB25M connectors that is included with the product. All RocketPort EXPRESS products are European RoHS directive compliant.

Features
PCI Express Serial x1, x2, x4, x8, x12 and x16 Lane Connectivity Low-profile or Standard Height Compatible RS-232, RS-422, RS-485 Software-selectable Serial Ports High Performance Serial Port Expansionwith communication Speeds up to 921 Kbps RoHS Compliant Microsoft Signed Drivers (WHQL) for Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, and Windows XP

Accessories
4000200
ESP Price: $81.96

Add Free Shipping
Comtrol 4000200
