IMC-21GA-LX-SC-T

See any errors on this page?
Please let us know.

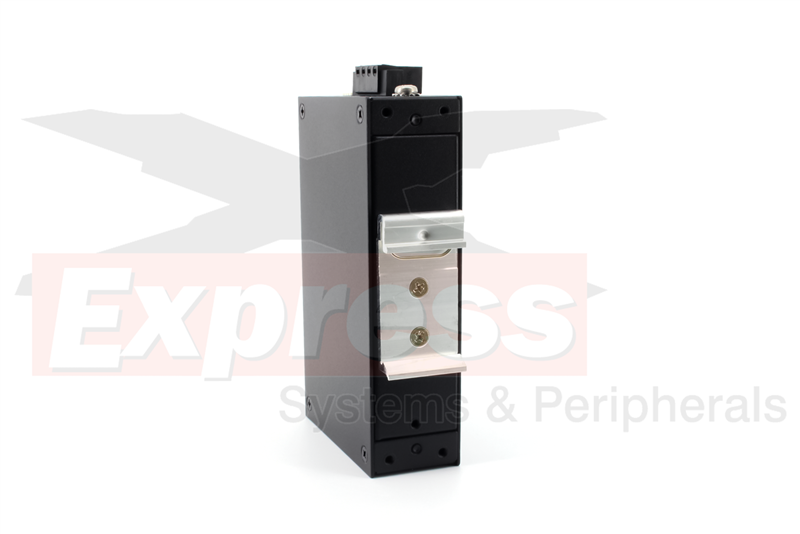

Alternative Views:

Moxa Industrial Gigabit Media Converter, Single-Mode 10km, SC, -40 to 75°C

ESP Price: $584.33

Contact us for Partner Pricing. (more info)

Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: IMC-21GA-LX-SC-T

Description

Technical Specs

Drivers & Downloads

The IMC-21GA industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 100/1000Base-SX/LX or selected 100/1000Base SFP module media conversion. The IMC-21GA supports IEEE 802.3az (Energy Efficient Ethernet) and 10K jumbo frames, allowing them to save power and enhance transmission performance. The converters come with a relay output warning alarm to help prevent damage and loss, and all IMC 21GA models are subjected to a 100% burn-in test, and are available in models that support a standard operating temperature range of 0 to 60°C, and an extended operating temperature range of -40 to 75°C.

MOXA IMC 21GA Series

Documentation

PDF Data Sheet

Hardware Installation Guide

Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3az (Energy Efficient Ethernet)
• Interface
RJ45 Ports	10/100/1000BaseT(X), auto MDI/MDI-X
Fiber Ports	100/1000Base-SX/LX or 100/1000BaseSFP slot
LED Indicators	PWR1, PWR2, G1 (copper port 10M/100M/1000M), G2 (fiber port 100M/1000M)

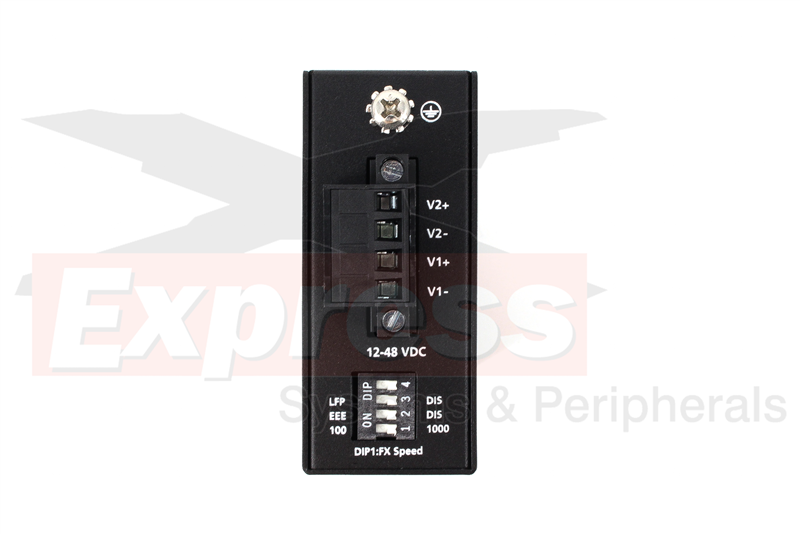

DIP Switches	Fiber speed 100M/1000M, Link Fault Pass-through, Energy Efficient Ethernet
• Optical Fiber
Multi-mode Transmission Distance (IMC-21GA-SX-SC)	100/1000BaseSX: 0 to 500 m, 850 nm (50/125 μm, 400 MHz*km)
Single-mode Transmission Distance (IMC-21GA-LX-SC)	100/1000BaseLX: 0 to 10 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km))
• Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)
Weight	170 g
Installation	DIN rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature	Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	12 to 48 VDC (10 to 60 VDC), redundant inputs
Input Current	284.7 mA @ 12 VDC; 156.0 mA @ 24 VDC
Connection	Removable terminal block
Overload Current Protection	1.5 A
Reverse Polarity Protection	Present
• Standards and Certifications
Safety	UL 60950-1
EMC	CE, FCC
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 3 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 3 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 EN 61000-4-11
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Green Product	RoHS, CRoHS, WEEE
• MTBF (mean time between failures)
Time	IMC-21GA: 2,762,058 hrs IMC-21GA-LX-SC: 2,573,203 hrs IMC-21GA-SX-SC: 2,573,203 hrs
Database	Telcordia (Bellcore), GB
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
