The ToughNet TN-4528A-16PoE-4GPoE Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. TN-4528A-16PoE-4GPoE Series Ethernet switches provide 24 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE (Power-overEthernet) function, and the Gigabit models have 4 Gigabit Ethernet interface with PoE function and with optional bypass relay function. The PoE switches are classified as power source equipment (PSE); they provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 75°C operating temperature and IP42-rated enclosure allow deployment in harsh environments. The TN-4528A-16PoE-4GPoE Series Ethernet switches are compliant with essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
|
• Technology
|
|
Standards
|
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
|
|
• Software Features
|
|
Management
|
IPv4/IPv6, SNMP v1/v2c/v3, Telnet, LLDP, Port Mirror, Syslog, RMON, BootP, DHCP Server/Client, DHCP Option 66/67/82, TFTP, SMTP, RARP, HTTP, HTTPS, SNMP inform, Flow Control, Back pressure flow control
|
|
Filter
|
802.1Q VLAN, Port-Based VLAN, GVRP, IGMPv1/v2, GMRP, Static Multicast
|
|
Redundancy Protocols
|
STP/RSTP, MSTP, Turbo Ring v1/v2, Turbo Ring v2 with DRC, Turbo Chain, Link Aggregation
|
|
Security
|
RADIUS, TACACS+, SSL, SSH, Port Lock, Broadcast Storm Protection, Rate Limit
|
|
Time Management
|
SNTP, NTP Server/Client, IEEE 1588v2 PTP (SW-based)
|
|
MIB
|
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
|
|
• Switch Properties
|
|
Priority Queues
|
4
|
|
Max. Number of VLANs
|
64
|
|
VLAN ID Range
|
VID 1 to 4094
|
|
IGMP Groups
|
256
|
|
• Interface
|
|
Fast Ethernet
|
Front cabling, M12 D-coded 4-pin female connector, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
|
|
Gigabit Ethernet
|
Front cabling, M12 X-coded 8-pin connector, 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, auto MDI/MDI-X connection
|
|
Console Port
|
M12 A-coding 5-pin male connector
|
|
Alarm Contact
|
2 relay outputs in one M12 A-coding 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
|
|
• Power Requirements
|
|
Input Voltage
|
24/36/48/72/96/110 VDC
|
|
Operating Voltage
|
16.8 to 137.5 VDC
|
|
Input Current
|
Max. 7.0 A @ 24 VDC
|
|
Overload Current Protection
|
Present
|
|
Connection
|
M23 connector
|
|
Reverse Polarity Protection
|
Present
|
|
• Physical Characteristics
|
|
Housing
|
Metal
|
|
IP Rating
|
IP42 protection (optional protective caps available for unused ports)
|
|

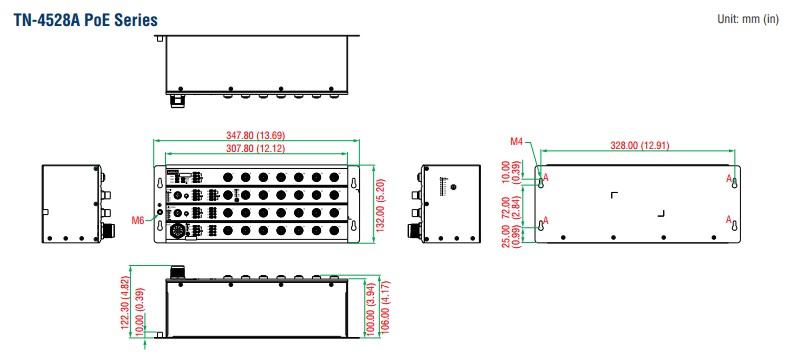

Dimensions
|
347.8 x 132 x 122.3 mm (13.70 x 5.20 x 4.81 in)
|
|
Weight
|
3304 g (7.27 lb)
|
|
Installation
|
Panel mounting
|
|
• Environmental Limits
|
|
Operating Temperature
|
-40 to 75°C (-40 to 167°F)
|
|
Storage Temperature
|
-40 to 85°C (-40 to 185°F)
|
|
Ambient Relative Humidity
|
5 to 95% (non-condensing)
|
|
Altitude
|
2000 m
|
|
Please contact Moxa if you require products guaranteed to function at higher altitudes
|
|
• Standards and Certifications
|
|
Safety
|
UL 61010-2-201, EN 60950-1 (LVD)
|
|
EMC
|
EN 55022, EN 55024
|
|
EMI
|
CISPR 22, FCC Part 15B Class A
|
|
EMS
|
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
|
|
Rail Traffic
|
(for panel mounting installations)EN 50155 (essential compliance*), EN 50121-4, EN 50121-3-2,
EN 45545-2
|
|
*Moxa defines “essential compliance” to include those EN 50155 requirements that make products more suitable for rolling stock railway applications.
|
|
Shock
|
EN 50155, IEC 61373
|
|
Freefall
|
IEC 60068-2-32
|
|
Vibration
|
EN 50155, IEC 61373
|
|
Note
|
Please check Moxa’s website for the most up-to-date certification status.
|
|
• MTBF (mean time between failures)
|
|
Time
|
393,894 hrs
|
|
Standard
|
Telcordia SR332
|
|
• Warranty
|
|
Warranty Period
|
5 years
|
|
Details
|
See www.moxa.com/warranty
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Up to 4 Gigabit ports with PoE function
- Isolated power with wide 24 to 110 VDC power supply range
- Essential compliance with EN 50155*
- -40 to 75°C operating temperature range
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- Up to 20 IEEE 802.3at/af compliant combo PoE and Ethernet ports
- Provides up to 30 watts per PoE port
- *Moxa defines “essential compliance” to include those EN 50155 requirements that make products more suitable for rolling stock railway applications.
|
|
|
|
|
|
|
