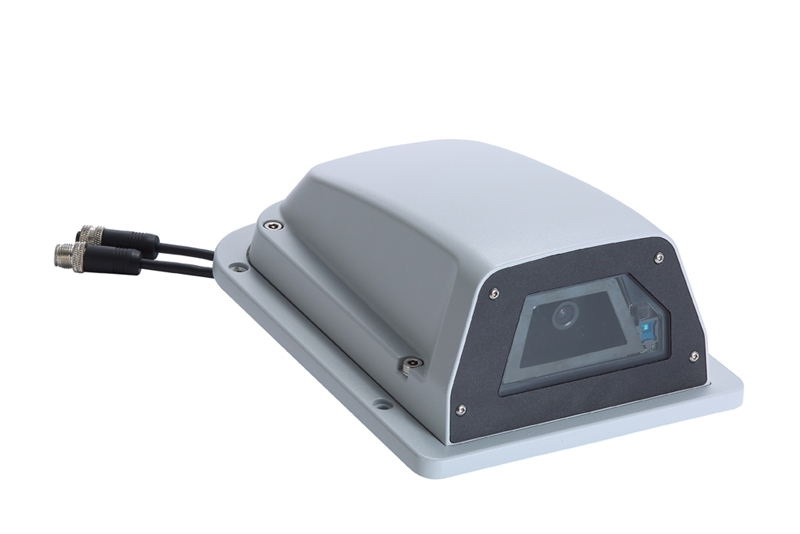

Moxa EN50155 Onboard Full-HD Day & Night Outdoor IP Camera, H.264/MJPEG, 1080p w/(1) 10/100MTX [4-pin M12 Dcode female connector, with 20 cm cable], PoE, built in glass heater & 4.2mm lens

ESP Price: $1,518.04

Contact us for Partner Pricing. (more info)

Availability: Usually Ships in 24 Hours; However, Due To Shortages Contact Sales to Verify
Product Code: VPORT06EC-2V42M

Description

Technical Specs

Drivers & Downloads

The VPort 06EC-2V outdoor IP cameras support 1080P 1920 x 1080 resolution video images at up to 60 frames per second. iCapTrue’s new image enhancement technology uses an advanced AE and AWB algorithm to produce better image quality in a variety of environments.

The chassis design is IP67 rated, and has been shown to provide ample dust and rain protection, and with a built-in front glass heater and a tough outer cover, the cameras have the versatility and ruggedness needed for outdoor mobile IP video surveillance applications. In addition, models supporting a wide -40 to 70°C operating temperature range are available.

Documentation

PDF Data Sheet

Quick Installation Guide

User's Manual

• Camera
Sensor	1/3” HD progressive scan CMOS
Lens	• 3.6 mm, F1.6: Diagonal 99°, Horizontal 70°, Vertical 39° • 4.2 mm, F1.6: Diagonal 82°, Horizontal 62°, Vertical 34° • 6.0 mm, F1.8: Diagonal 62°, Horizontal 43°, Vertical 24° • 8.0 mm, F1.6: Diagonal 42°, Horizontal 33°, Vertical 17°
Illumination (low light sensitvity)	• Color: 0.2 Lux @ F1.6 • Black/White: 0.05 Lux
Camera Angle	Pan +/-5°, Tilt +10/-5° (controlled manually)
ICR Control (for day & night)	Auto
Synchronization	Internal
White Balance	ATW/AWB/Custom settings, with 4 preset color temperatures
Electronic Shutter	Auto, Fixed (1/30 to 1/25000 sec)
DNR	Built-in
WDR	On/Off, up to 100 dB
AGC (auto gain control)	2X, 4X, 8X, 16X
Flickerless Control	Automatic, 50 Hz, 60 Hz
Auto Exposure	Level ±5
Image Rotation	Flip, Mirror, 90°, 180°, 270° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
Black Level Control	High/Medium/Low
• Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	4
Video Resolution and FPS (frames per second)
Video Viewing	• CBR Pro™ for good image quality in limited bandwidth transmissions • DynaStream™ support for automatic frame rate adjustment • 3 configurable privacy mask areas • Adjustable image size and quality • Timestamp and text overlay • OSD (On Screen Display) position adjustable • Maximum of 5 simultaneous unicast connections • Digital PTZ
• Network
Protocols	TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67, IPv6, IEC 61375-2-3
Ethernet	1 10/100BaseT(X) isolated Ethernet port, 4-pin M12 Dcode female connector, with 20 cm cable
• Local Storage
SD Socket	Micro SD socket
Interface	SDXC (can support up to 1 TB)
• GPIO
Digital Outputs	1, 5-pin M12 male connector with 20 cm cable, 24 VDC / 1 A
• Power Requirements
Camera	Power over Ethernet (IEEE 802.3af)
Heater Input	24 VDC (for defrosting)
• Physical Characteristics
Housing	Metal housing with IP67 rain and dust protection
Dimensions	83 x 168 x 223 mm (3.27 x 6.61 x 8.78 in)
Weight	1.63 kg (3.59 lb)
• Alarms
Intelligent Video	Camera tamper
Video Motion Detection	3 independently configurable areas
Shock	G sensor for shock detection
Humidity	Detects camera's internal humidity
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	50 MB video buffer for JPEG snapshot images
• Security
Password	User level password protection
Filtering	By IP address
Encryption	HTTPS, SSH
• Environmental Limits
Operating Temperature	Standard models: -25 to 55°C (-13 to 131°F) Wide Temp. models: -40 to 70°C (-40 to 158°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
Safety	UL 60950-1
Rail Traffic	EN 50155, EN 50121-3-2:2015 This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here www.moxa.com/doc/specs/EN_50155_Compliance.pdf
EMI	FCC Part 15, CISPR (EN 55032) Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8
Shock	IEC 61373
Freefall	IEC 60068-2-32
Vibration	IEC 61373
Salt Spray Test	ASTM B368 (CASS) 125 hours
Note: Please check Moxa’s website for the most up-to-date certification status.
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
• Minimum Viewing System Requirements
CPU	Pentium 4, 2.4 GHz
Memory	512 MB of memory
OS	Windows XP with SP3 or above, Windows 7
Browser	Internet Explorer 8.x or above
Multimedia	DirectX 9.0c or above
• Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website).
Standard	ONVIF Profile S
